I will write about the final work I had to do for the BIM and Revit course I’ve done in the FLC of Valencia. This was two houses basic project.

external camera

internal camera

south and north elevations

The houses are approximately rectangular in shape. The building is bounded by an open space to the north and to the east, another building to the west, and a street to the south.

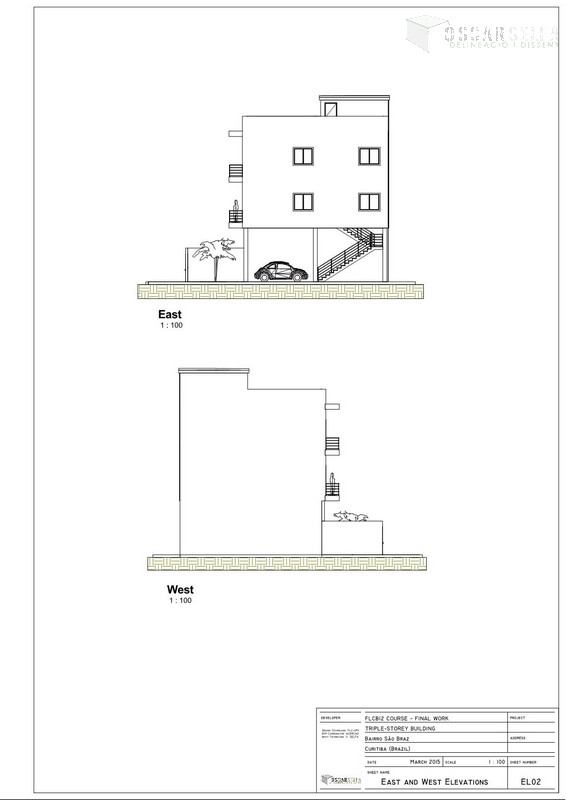

east and west elevations

exploited 3D

Level 0

The front of the building faces south, its long axis is oriented south-north to minimise the area of wall exposed to the sun.

The project is a three-storey building, which contains two flats with a approximately square-shaped plan. Each flat contains four rooms. The entrance from the stairs, which is located on the north side, leads into a hall. Beyond of the hall, in the south-east corner is the living room, and beyond that, in the south-west corner, is the kitchen. Both, the kitchen and the living room are adjacent to a balcony situated on the south side. It is not a separated dining room. A toilet is located in the centre of the house. Access to the toilet is from the hall. The two bedrooms are located on the east side with the closets between them.

On the level 0, I placed the shared parking and the covered entrance because people waiting to enter the house need protecting from the weather.

Level 1

Level 2

When I designed the houses (levels 1 and 2), I placed the main bedroom away from the living room because the noise will disturb people sleeping. The windows of the bedrooms face east. I also placed the kitchen next to the living room because it makes serving food easier, and the bathroom near the bedrooms.

The shared terrace extends the whole area of the level 3.

Well, as I said before, this was only a basic project for that course, in addition, I’ve learned Revit Structure by myself.

Location of the project: south of Brazil.

Deadline: 15 days.

Luckily, I have got the certificate.

I want to make a move in my career. I’ve been a Draftsman and a CAD Technician since 1995. I want to broaden my horizons and became a Revit Technician now.

transversal sactions

longitudinal sections
